Metabarcoding analaysis (16S rRNA marker) with FROGS

Illumina 16S V3-V4

By Olivier Rué

Article published on 25/01/2021 (last update on 25/01/2021)

3380 mots 16 mins de lecture

Level: advanced | Prerequites: migale


The purpose of this post is to show you how to analyze 16S metabarcoding datasets (Illumina 16S V3-V4 region) from the command line with FROGS on the migale server and how to explore data in a BIOM file with phyloseq.

FROGS [1] is a tool dedicated to metabarcoding data analysis, available on a Galaxy server and from command line. Phyloseq [2] is the R package of reference for dealing with metabarcoding data.

The following analyses have been performed on the Migale cluster and You can easily reproduce the analyses if you have got an account on our infrastructure. If you are not familiar with the Migale infrastructure, you can read the dedicated post.

Here are the informations about tools, packages and databanks we will use in this tutorial:

Tool, package or databank Version
sra-tools [3] 2.10.1
FROGS [1] 3.2.0
fastqc [4] 0.11.8
multiqc [5] 1.8
phyloseq [2] 1.32.0
phyloseq.extended [6]
ggplot2 [7] 3.3.2
Silva [8] 138
This post is intended neither to provide an in-depth analysis of the dataset nor to answer biological questions (refer to our other tutorial instead). It is rather an illustration of the technical possibilities and various tools offered by the Migale infrastructure for this kind of data. Please be aware that the parameters of the tools used here are tailored to this particular dataset and should be adapted to your own needs.
FROGS is also available in our Galaxy instance.


The dataset we will analyze in this post is a part of the samples used in this publication. These are 16S rRNA amplicons of meat and seafood products, as well as synthetic communities, sequenced with the Illumina MiSeq sequencing technology.

The following table gives informations on samples, commonly refered to as metadata and stored in a metadata file:

Sample Replicate Run BioSample Amplicon Experiment EnvType
CS2_16S 2 SRR7127609 SAMN09070431 16S V3-V4 SRX4048655 Poultry sausage
CS3_16S 3 SRR7127610 SAMN09070432 16S V3-V4 SRX4048654 Poultry sausage
SF1_16S 1 SRR7127612 SAMN09070433 16S V3-V4 SRX4048653 Salmon fillet
SF2_16S 2 SRR7127613 SAMN09070434 16S V3-V4 SRX4048652 Salmon fillet
PS1_16S 1 SRR7127614 SAMN09070427 16S V3-V4 SRX4048651 Pork sausage
PS2_16S 2 SRR7127615 SAMN09070428 16S V3-V4 SRX4048650 Pork sausage
PS3_16S 3 SRR7127616 SAMN09070429 16S V3-V4 SRX4048649 Pork sausage
CS1_16S 1 SRR7127617 SAMN09070430 16S V3-V4 SRX4048648 Poultry sausage
SF3_16S 3 SRR7127619 SAMN09070435 16S V3-V4 SRX4048646 Salmon fillet
CF1_16S 1 SRR7127620 SAMN09070436 16S V3-V4 SRX4048645 Cod fillet
CF2_16S 2 SRR7127628 SAMN09070437 16S V3-V4 SRX4048637 Cod fillet
CF3_16S 3 SRR7127629 SAMN09070438 16S V3-V4 SRX4048636 Cod fillet
GB1_16S 1 SRR7127630 SAMN09070439 16S V3-V4 SRX4048635 Ground beef
GB2_16S 2 SRR7127631 SAMN09070440 16S V3-V4 SRX4048634 Ground beef
GB3_16S 3 SRR7127632 SAMN09070441 16S V3-V4 SRX4048633 Ground beef
MC1_16S 1 SRR7127633 SAMN09070442 16S V3-V4 SRX4048632 Mock community
MC2_16S 2 SRR7127634 SAMN09070443 16S V3-V4 SRX4048631 Mock community
MC3_16S 3 SRR7127635 SAMN09070444 16S V3-V4 SRX4048630 Mock community
MC4_16S 4 SRR7127636 SAMN09070445 16S V3-V4 SRX4048629 Mock community
MC5_16S 5 SRR7127637 SAMN09070446 16S V3-V4 SRX4048628 Mock community

Bioinformatics analyses

Get and prepare data

The first step is to get the FASTQ files, containing the sequencing data. In our case they are available on a public repository and we will need to download them thanks to their accession ID with sra-tools [3].

cd ~/work
mkdir -p FROGS_16S/LOGS
cd FROGS_16S
conda activate sra-tools-2.10.1
awk '{print "fasterq-dump --split-files --progress --force --outdir . --threads 1", $3}' <(grep SRR metadata.tsv) >>
conda deactivate

Some steps are needed to use these FASTQ files as FROGS inputs. FROGS needs to know which files belong to the same samples. FROGS will search the patterns _R1.fastq and _R2.fastq. Moreoever, sample names are the characters preceeding _R1.fastq and _R2.fastq. We have to rename files from: SRR7127616_1.fastq and SRR7127616_2.fastq to PS3_16S_R1.fastq and PS3_16S_R2.fastq. Finally, we can compress them to save disk space.

The following commands will compress and add the expected tag to all files:

for i in *.fastq ; do gzip $i ;  mv $i.gz $(echo $i | sed "s/_/_R/" ).gz ; done

The following command will rename files from informations present in the metadata file:

awk -F $'\t' '{id = $1 ; oldr1 = $3"_R1.fastq.gz" ; oldr2 = $3"_R2.fastq.gz" ;  r1 = id"_R1.fastq.gz" ; r2 = id"_R2.fastq.gz" ; system("mv " oldr1 " " r1 ) ; system("mv " oldr2 " " r2 )}' <(grep SRR metadata.tsv)

Quality control

We can check rapidly if R1 and R2 files have the same number of reads. If not, the files may be corrupted during the download process.

This step is crucial. You have to assess the quality of your data to avoid (or at least understand) surprises in results.
for i in *.fastq.gz ; do echo $i $(zcat $i | echo $((`wc -l`/4))) ; done

The number of reads varies from 18 890 reads to 112 853.

It is useful to keep track of the initial number of reads. We can add it to the metadata file:

head -n 1 metadata.tsv | tr -d "\n" > header.txt
echo -e "\tReads" >> header.txt
grep SRR metadata.tsv  | sort -k1,1  > file1
awk -F $'\t' '{system("zcat " $1"_R1.fastq.gz | echo $((`wc -l`/4))"  )}' file1 >> reads
cat header.txt <(paste file1 reads) >> metadata2.txt
rm file1 header.txt reads

We now use FastQC [4] and then MultiQC [5] to aggregate all reports into one.

mkdir FASTQC
for i in *.fastq.gz ; do echo "conda activate fastqc-0.11.8 && fastqc $i -o FASTQC && conda deactivate" >> ; done
qarray -cwd -V -N fastqc -o LOGS -e LOGS
qsub -cwd -V -N multiqc -o LOGS -e LOGS -b y "conda activate multiqc-1.8 && multiqc FASTQC -o MULTIQC && conda deactivate"

Let look at the HTML file produced by MultiQC. Some characteristics are important to note for metabarcoding data:

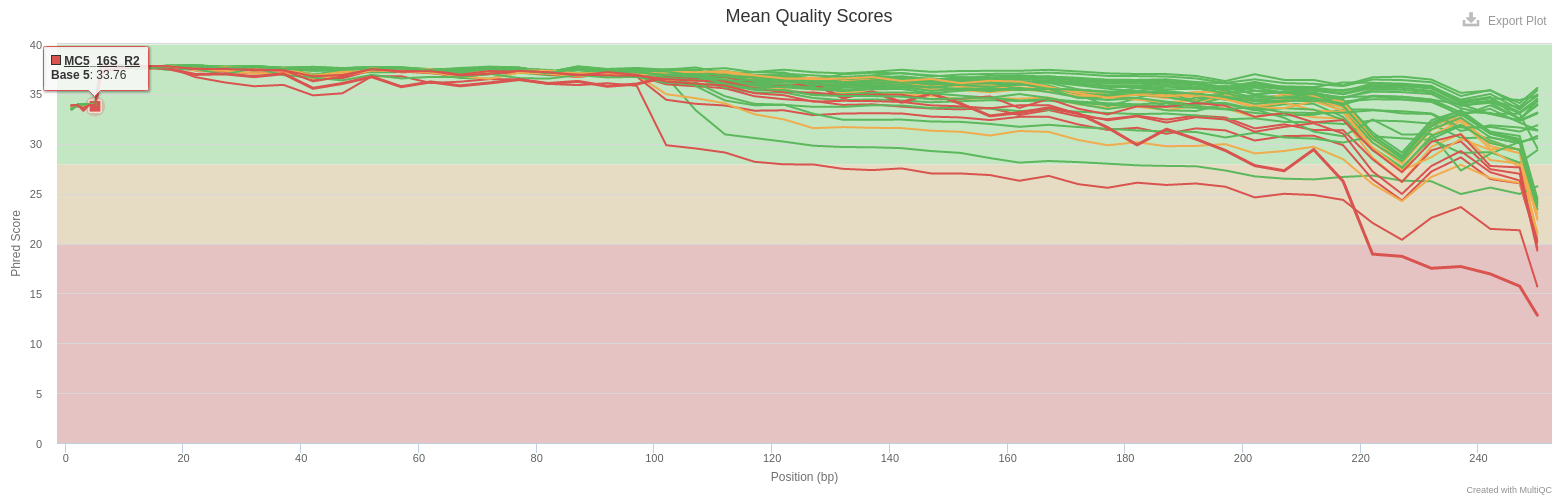

  • Sequence Quality Histograms
    • Mean quality scores are pretty good. Curve decreases a little more for MC5_R2. But the overlap of R1 and R2 can overcome that.
    • All reads are 250 bases long. It indicates that no trimming has been previously performed

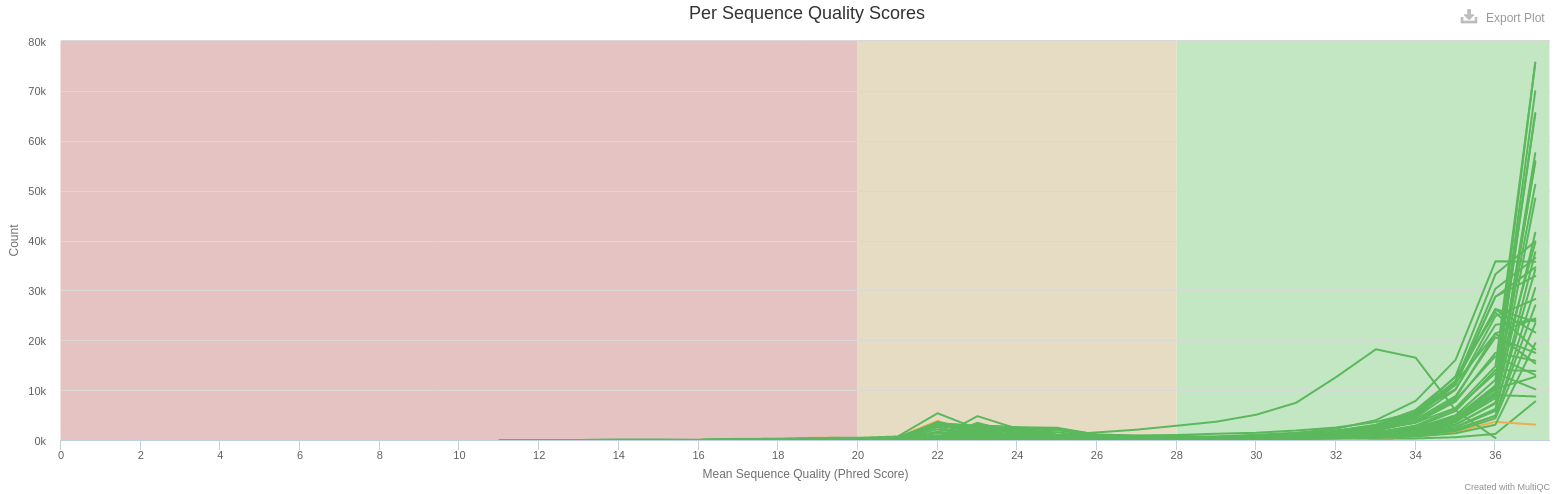

  • Per Sequence Quality Scores
    • The large majority of reads have a mean quality > 30 (99.9 % of confidence)

  • Per Base Sequence Content

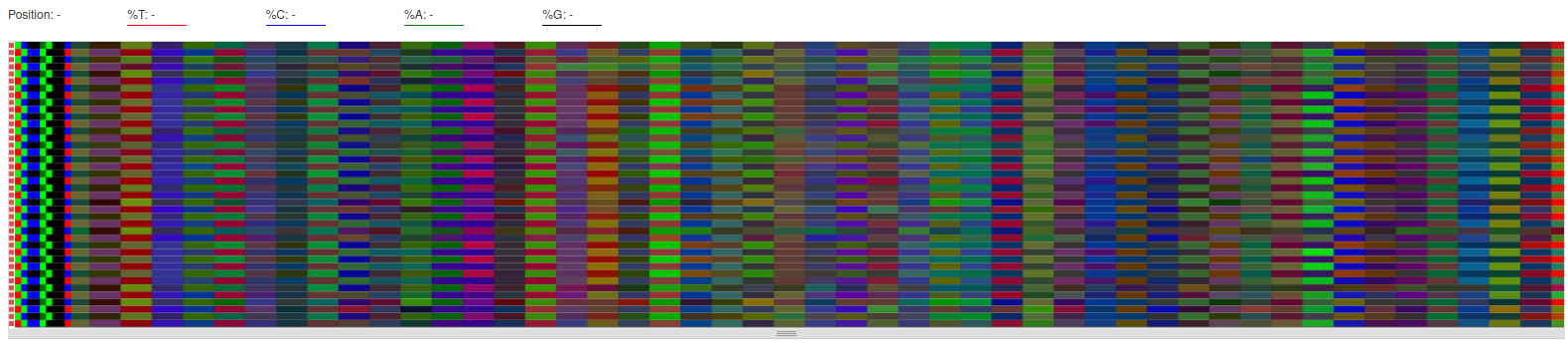

    • We can see similar colors for R1 files and for R2 files at the beginning of the reads. They represent the primers.

  • Per Sequence GC Content
    • Not informative for amplicon data

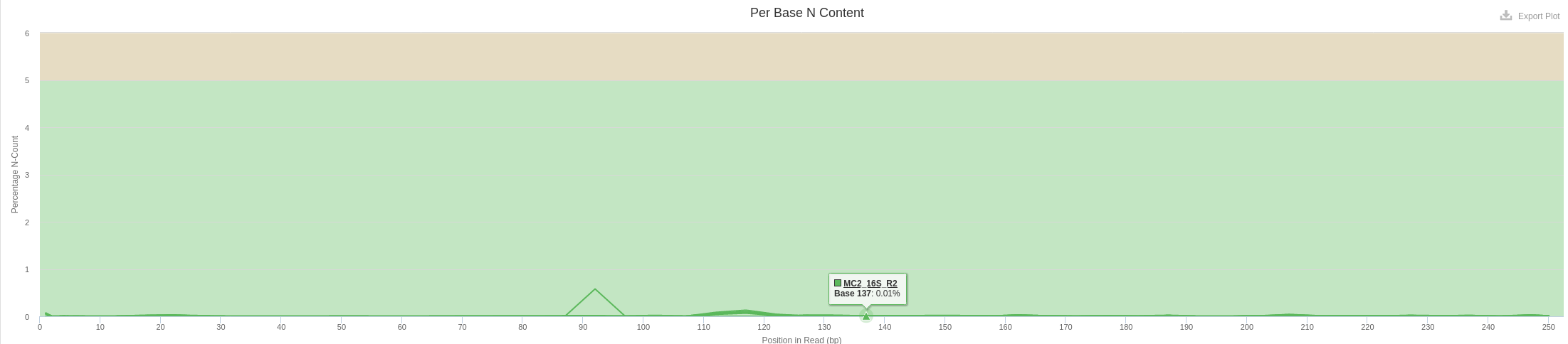

  • Per Base N Content
    • A small fraction of N bases are still present

  • Sequence Length Distribution
    • All reads are about 250 bases in size
  • Sequence Duplication Levels
    • Not informative for amplicon data
  • Overrepresented sequences
    • Not informative for amplicon data

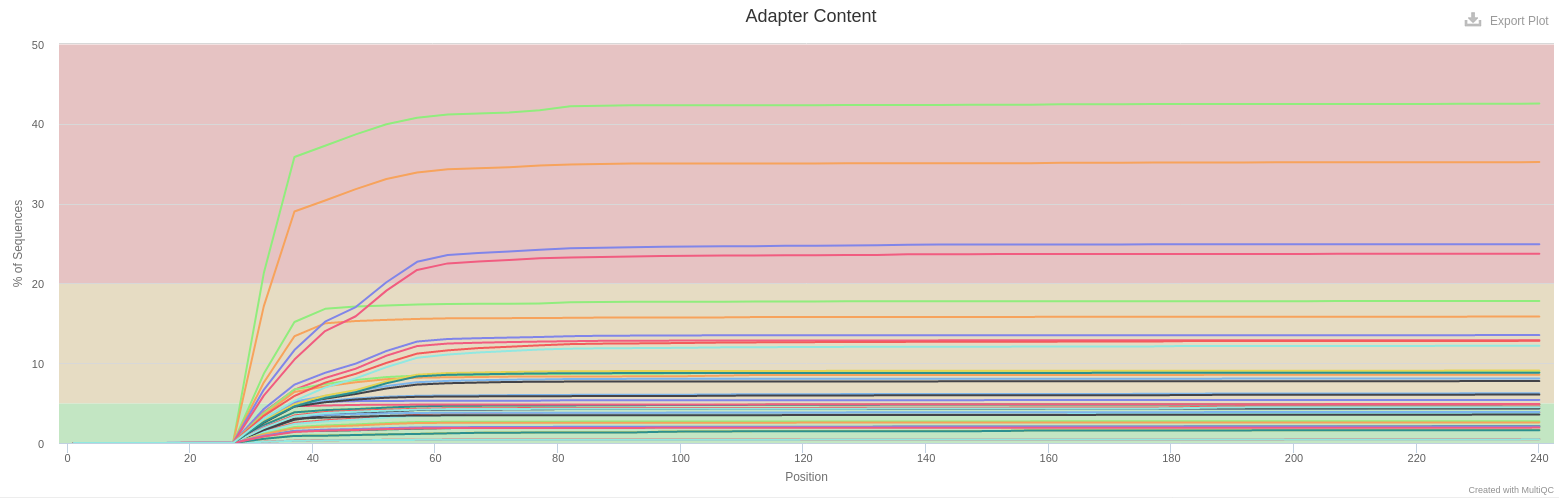

  • Adapter Content
    • Illumina adapters are present at different levels for all samples. It is representative of small fragments that have been sequenced. Those sequences will be removed later with FROGS.

Sequencing quality is good. Nothing wrong detected at this step


A good practice is to create an archive containing all FASTQ files. It is easier to manipulate than the 40 individual files.

tar zcvf data.tar.gz *.fastq.gz

Now FASTQ files can be deleted because they are stored in the archive.

rm -f *.fastq.gz
# To extract files:
# tar xzvf data.tar.gz

Reads preprocessing

The knowledge of your data is essential. You have to answer the following questions to choose the parameters:

  • Sequencing technology?
  • Targeted region and the expected amplicon length?
  • Have reads already been merged?
  • Have primers already been deleted?
  • What are the primers sequences?

Here are the answers for this dataset:

  • Sequencing technology

    • Illumina
    • 454
    • IonTorrent
    • Other
  • Type of data

    • R1 and R2 files for one sample
    • One file by sample (R1 and R2 already merged or single-end technology data)
  • Amplicon expected length

    • Reads are mergeable: V3-V4 region is ~450-bp. So reads should overlap
    • Reads are not mergeable
    • Reads are are both mergeable and unmergeable
  • Primers sequences

    • Primers are still present: V3F(5’-ACGGRAGGCWGCAGT-3’) and V4R (5’-TACCAGGGTATCTAATCCT-3’) have been used for the first amplification
    • Primers have already been removed
  • Reads size

    • 250 bp as seen previously

During the preprocess, paired-end reads are merged, filtered on length (according to min and max) and removed if they contain ambigous bases. Finally sequences are dereplicated to keep only one copy of each sequence. Counts per sample of each unique sequence are stored in the count matrix.

mkdir FROGS
qsub -cwd -V -N preprocess -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && illumina --input-archive data.tar.gz --min-amplicon-size 200 --max-amplicon-size 490 --merge-software pear --five-prim-primer ACGGRAGGCWGCAGT --three-prim-primer AGGATTAGATACCCTGGTA --R1-size 250 --R2-size 250 --nb-cpus 8 --output-dereplicated FROGS/preprocess.fasta --output-count FROGS/preprocess.tsv --summary FROGS/preprocess.html --log-file FROGS/preprocess.log && conda deactivate"

Let look at the HTML file produced by FROGS preprocess to check what happened.

  • 89.48% of raw reads are kept
    • No overlap was found for ~8% of reads.

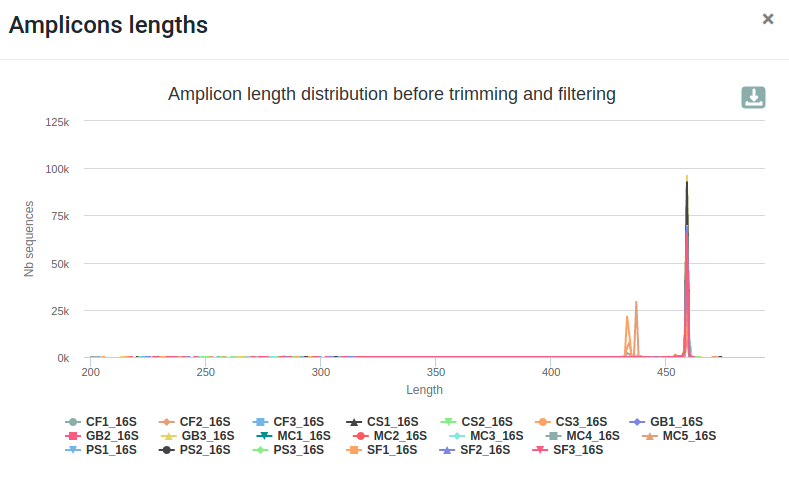

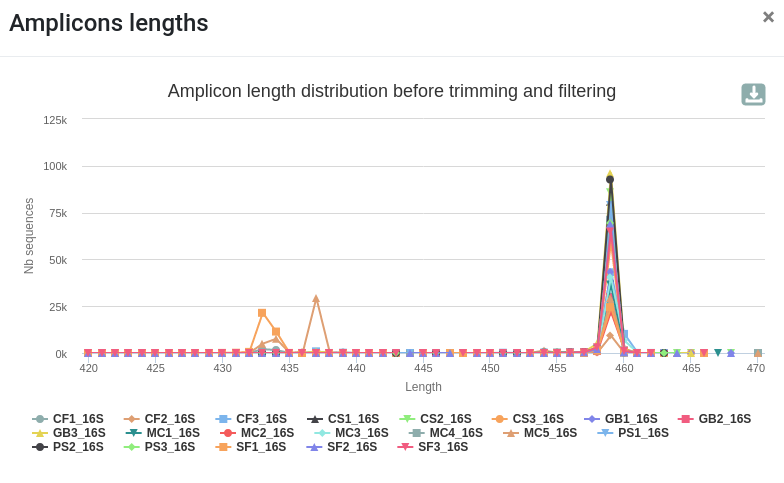

  • The length distribution of sequences show that some sequences do not have the expected size.
    • We can run this tool again to increase min amplicon size and reduce max amplicon size.

qsub -cwd -V -N preprocess -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && illumina --input-archive data.tar.gz --min-amplicon-size 420 --max-amplicon-size 470 --merge-software pear --five-prim-primer ACGGRAGGCWGCAGT --three-prim-primer AGGATTAGATACCCTGGTA --R1-size 250 --R2-size 250 --nb-cpus 8 --output-dereplicated FROGS/preprocess.fasta --output-count FROGS/preprocess.tsv --summary FROGS/preprocess.html --log-file FROGS/preprocess.log  && conda deactivate"

Differences can be seen in the second HTML report.

Reads clustering

Following FROGS guidelines, swarm [9] is used with d=1.

qsub -cwd -V -N clustering -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && --input-fasta FROGS/preprocess.fasta --input-count FROGS/preprocess.tsv --distance 1 --fastidious --nb-cpus 8 --log-file FROGS/clustering.log --output-biom FROGS/clustering.biom --output-fasta FROGS/clustering.fasta --output-compo FROGS/clustering_otu_compositions.tsv && conda deactivate"
qsub -cwd -V -N clusters_stats -o LOGS -e LOGS -b y "conda activate frogs-3.2.0 && --input-biom FROGS/clustering.biom --output-file FROGS/clusters_stats.html --log-file FROGS/clusters_stats.log && conda deactivate"

This report shows classical characteristics of OTUs built with swarm:

  • A lot of OTUs: 122,281
  • ~88% of them are composed of only 1 sequence

Chimera removal

The chimera detection is performed with vsearch [10].

qsub -cwd -V -N chimera -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && --input-fasta FROGS/clustering.fasta --input-biom FROGS/clustering.biom --non-chimera FROGS/remove_chimera.fasta --nb-cpus 8 --log-file FROGS/remove_chimera.log --out-abundance FROGS/remove_chimera.biom --summary FROGS/remove_chimera.html && conda deactivate"

This report shows classical results for chimera detection in 16S data:

  • ~10% of sequences (20% of OTUs) are chimeric
  • Chimeric OTUs are made of few sequences

Abundance and prevalence-based filters

We now apply filters to remove low-abundant OTUs that are likely to be chimeras or artifacts. We check also if some phiX sequences are still present. Low-abundant OTUs are difficult to estimate. Following FROGS guidelines, we choose 0.005% of overall abundance. More stringent filters, including filters based on the prevalence across samples, can be made later if needed.

qsub -cwd -V -N filters -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && --input-fasta FROGS/remove_chimera.fasta --input-biom FROGS/remove_chimera.biom --output-fasta FROGS/filters.fasta --nb-cpus 8 --log-file FROGS/filters.log --output-biom FROGS/filters.biom --summary FROGS/filters.html --excluded FROGS/filters_excluded.tsv --contaminant /db/frogs_databanks/contaminants/phi.fa --min-sample-presence 1 --min-abundance 0.00005 && conda deactivate"

This report allows to show the impact of our filters:

  • 180,483 OTUs are filtered out; 195 OTUs are kept!
  • ~16% of sequences are lost but they mostly correspond to low-abundances OTUs!


It is now time to give our OTUs a taxonomic affiliation. We use the latest available version of Silva [8] (v.138) among all databanks available in the dedicated repository: /db/frogs_databanks/assignation/.

qsub -cwd -V -N affiliation -o LOGS -e LOGS -pe thread 8 -R y -b y "conda activate frogs-3.2.0 && --input-fasta FROGS/filters.fasta --input-biom FROGS/filters.biom --nb-cpus 8 --log-file FROGS/affiliation.log --output-biom FROGS/affiliation.biom --summary FROGS/affiliation.html --reference /db/frogs_databanks/assignation/silva_138_16S/silva_138_16S.fasta && conda deactivate"

This report shows that all OTUs were affiliated.

qsub -cwd -V -N affiliations_stats -o LOGS -e LOGS -b y "conda activate frogs-3.2.0 && --input-biom FROGS/affiliation.biom --output-file FROGS/affiliations_stats.html --log-file FROGS/affiliations_stats.log --multiple-tag blast_affiliations --tax-consensus-tag blast_taxonomy --identity-tag perc_identity --coverage-tag perc_query_coverage  && conda deactivate"

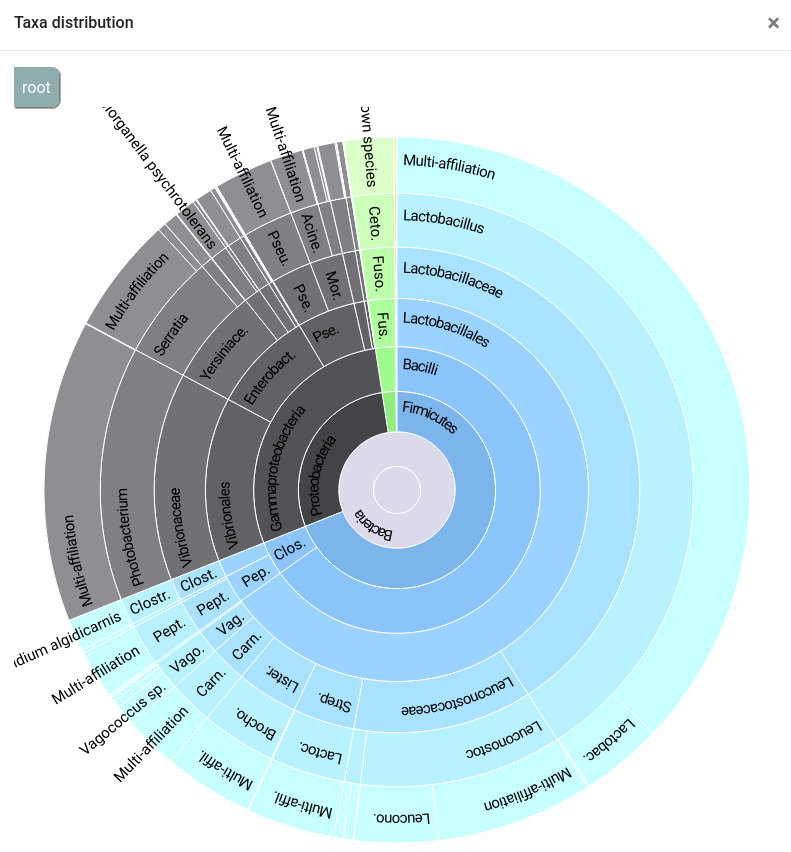

You can use the Krona output to explore the affiliation.

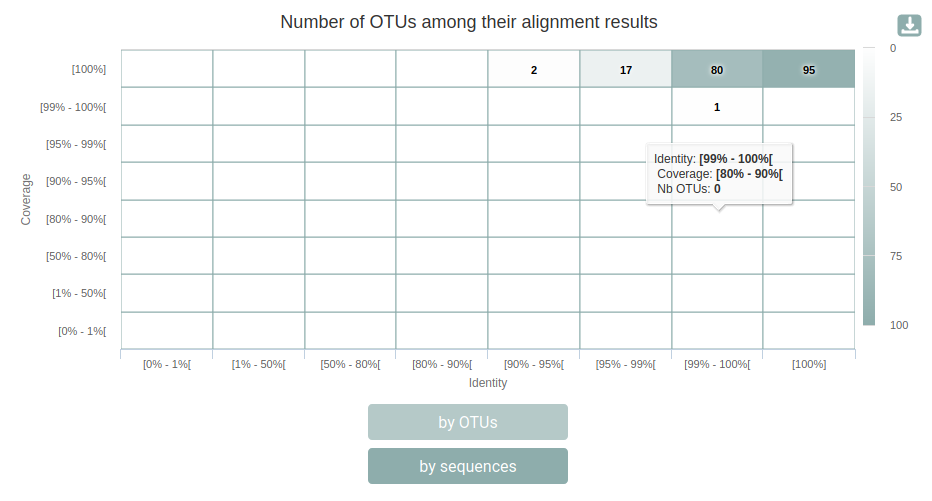

This report shows complementary informations about how OTUs were affiliated. We can see that the 175 OTUs have a blast coverage of 100% and a blast percentage identity > 99%. It can give you indications on supplementary filters to perform (remove OTUs with too low coverage…).

qsub -cwd -V -N biom_to_tsv -o LOGS -e LOGS -b y "conda activate frogs-3.2.0 && --input-biom FROGS/affiliation.biom --input-fasta FROGS/filters.fasta --output-tsv FROGS/affiliation.tsv --output-multi-affi FROGS/multi_aff.tsv --log-file FROGS/biom_to_tsv.log  && conda deactivate"

Here are the results for our OTUs, quite a few of them are multi-affiliated:


FROGS uses blast tool against a reference databank to assign OTUs. Particularly with 16S amplicon data, different species can harbor a similar, or even identical, 16S sequence in the targeted region. This is a very common phenomenon which explains why 16S analyses often do not discriminate between species within the same Genus. FROGS gives you the ability to view the conflicting affiliations of a given OTU. These are called multi-affiliations. Here is an example of a multi-affiliation:

observation_name blast_taxonomy blast_subject blast_perc_identity blast_perc_query_coverage blast_evalue blast_aln_length
Cluster_4 Bacteria;Firmicutes;Bacilli;Lactobacillales;Lactobacillaceae;Lactobacillus;Lactobacillus sakei JX275803.1.1516 100.0 100.0 0.0 425
Cluster_4 Bacteria;Firmicutes;Bacilli;Lactobacillales;Lactobacillaceae;Lactobacillus;Lactobacillus curvatus KT351722.1.1500 100.0 100.0 0.0 425

Sometimes it is useful to modify a multi-affiliation:

observation_name blast_taxonomy blast_subject blast_perc_identity blast_perc_query_coverage blast_evalue blast_aln_length
Cluster_2 Bacteria;Proteobacteria;Gammaproteobacteria;Vibrionales;Vibrionaceae;Photobacterium;unknown species FJ456537.1.1524 100.0 100.0 0.0 425
Cluster_2 Bacteria;Proteobacteria;Gammaproteobacteria;Vibrionales;Vibrionaceae;Photobacterium;unknown species FJ456356.1.1570 100.0 100.0 0.0 425
Cluster_2 Bacteria;Proteobacteria;Gammaproteobacteria;Vibrionales;Vibrionaceae;Photobacterium;Photobacterium phosphoreum AB681911.1.1470 100.0 100.0 0.0 425
Cluster_2 Bacteria;Proteobacteria;Gammaproteobacteria;Vibrionales;Vibrionaceae;Photobacterium;Photobacterium phosphoreum AY341437.1.1467 100.0 100.0 0.0 425
Cluster_2 Bacteria;Proteobacteria;Gammaproteobacteria;Vibrionales;Vibrionaceae;Photobacterium;Photobacterium phosphoreum X74687.1.1457 100.0 100.0 0.0 425

You can use a dedicated Shiny application to do this easily through a nice interface:

Here is a video example illustrating the use of the app on our dataset:

Analysis of OTUs

Phyloseq [2] is a R package dedicated to diversity analyses. It must be loaded in your R session prior to any analysis. You can do so using the following commands on the Migale Rstudio server:

Make a phyloseq object

To create a phyloseq object, we need the BIOM file, the metadata file and eventually a tree file (not generated here).

Go to your work directory:

biomfile <- "FROGS/affiliation.biom"
frogs <- import_frogs(biomfile, taxMethod = "blast")
metadata <- read.table("metadata2.txt", row.names = 1, header = TRUE, sep = "\t", stringsAsFactors = FALSE)
sample_data(frogs) <- metadata
## phyloseq-class experiment-level object
## otu_table()   OTU Table:         [ 195 taxa and 20 samples ]
## sample_data() Sample Data:       [ 20 samples by 7 sample variables ]
## tax_table()   Taxonomy Table:    [ 195 taxa by 7 taxonomic ranks ]

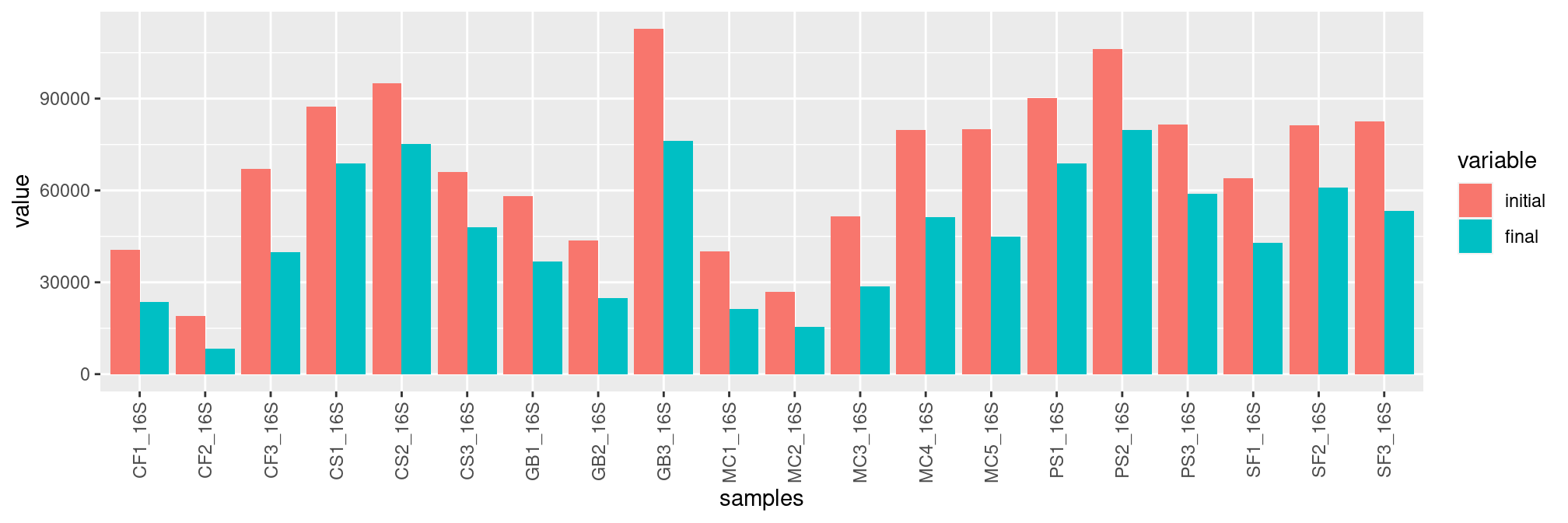

Here are the number of sequences before (red) and after (blue) the bioinformatics analyses, without additional curation or normalization.

samples <- rownames(sample_data(frogs))
final <- sample_sums(frogs)
initial <- metadata$Reads
final <- as.vector(t(final))
df <- data.frame(initial,final,samples)
df <- melt(df, id.vars='samples')
ggplot(df, aes(x=samples, y=value, fill=variable)) +
       geom_bar(stat='identity', position='dodge') +
      theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))

Phyloseq functions

From this object, you can apply a lot of functions to explore it. The full documentation is available here.

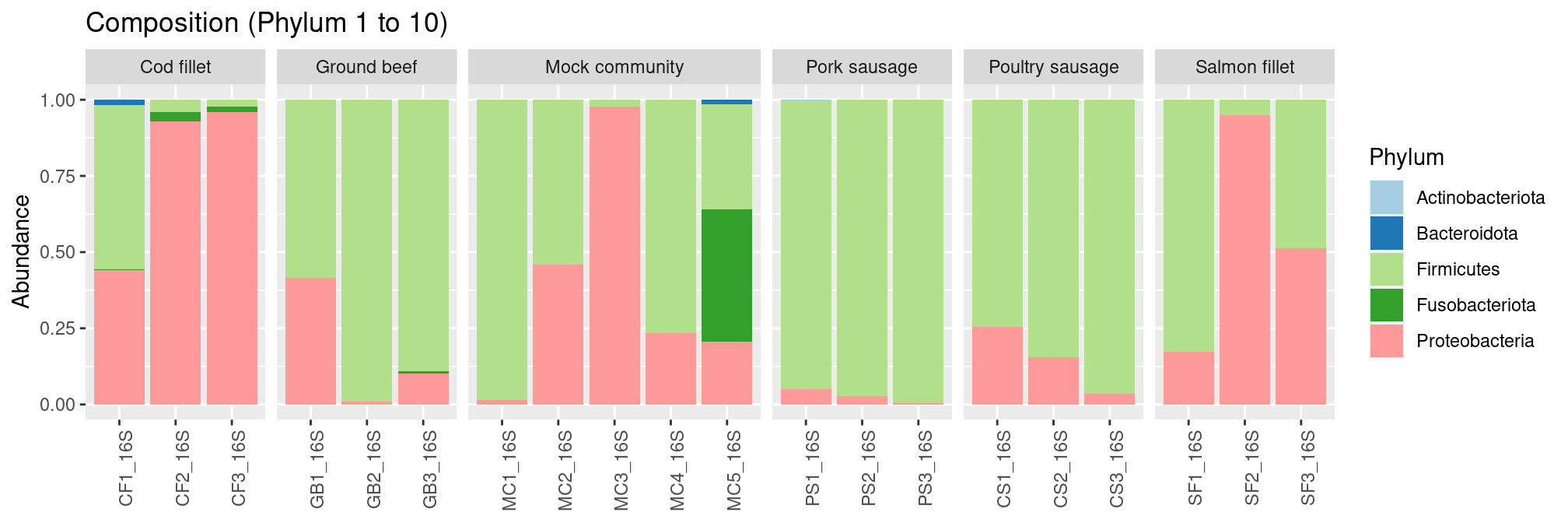

We can plot the composition of our samples at Phylum level with the function plot_bar(), ordered by EnvType metadata:

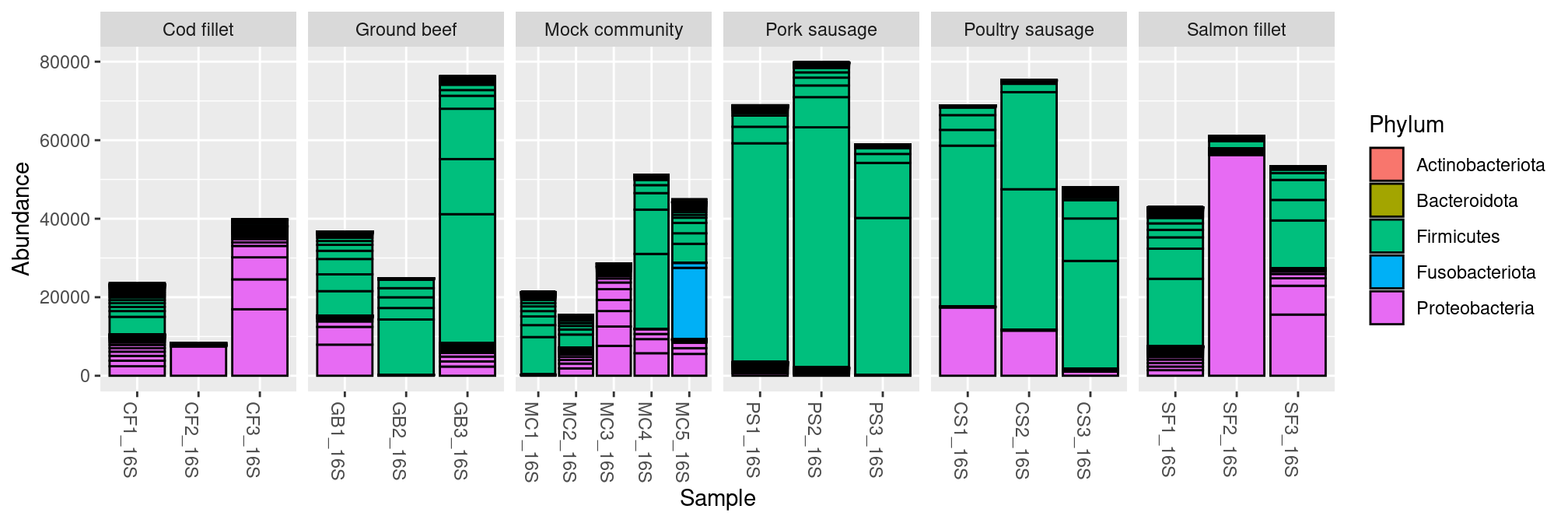

plot_bar(frogs, fill="Phylum") + facet_wrap(~EnvType, scales= "free_x", nrow=1)

plot_composition() function allows to plot relative abundances:

plot_composition(frogs, taxaRank1 = NULL, taxaSet1 = NULL, taxaRank2 = "Phylum", numberOfTaxa = 10) +
  scale_fill_brewer(palette = "Paired") +
  facet_grid(~EnvType, scales = "free_x", space = "free_x")

We can rarefy samples to get equal depths for all samples before computing diversity indices with function rarefy_even_depth().

frogs_rare <- rarefy_even_depth(frogs, rngseed = 20200831)
Be careful with rarefaction, in this case a lot of sequences are lost because the smallest sample has so few sequences. Always check sample depths before rarefaction! You can remove poorly sequenced samples.
samples <- rownames(sample_data(frogs_rare))
non_rarefied <- sample_sums(frogs)
rarefied <- sample_sums(frogs_rare)
initial <- metadata$Reads

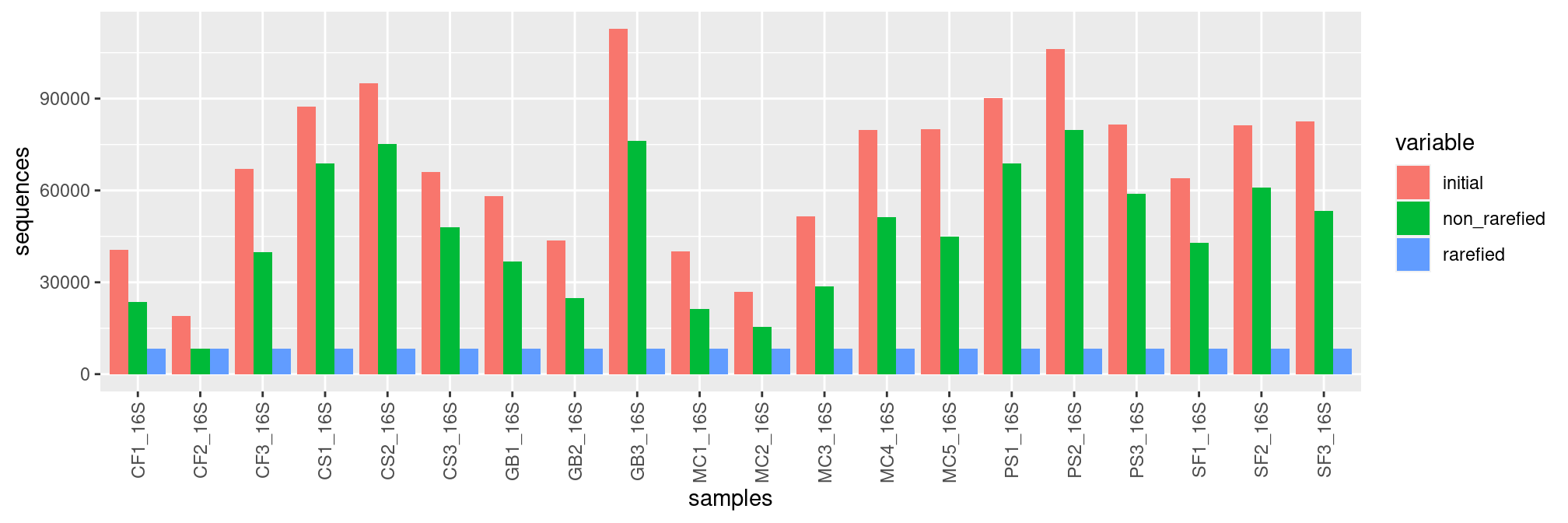

df <- data.frame(initial,non_rarefied,rarefied,samples)
df <- melt(df, id.vars='samples')
p <- ggplot(df, aes(x=samples, y=value, fill=variable)) +
      geom_bar(stat='identity', position='dodge') +
      theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))

The rarefaction curves allow to see it too:

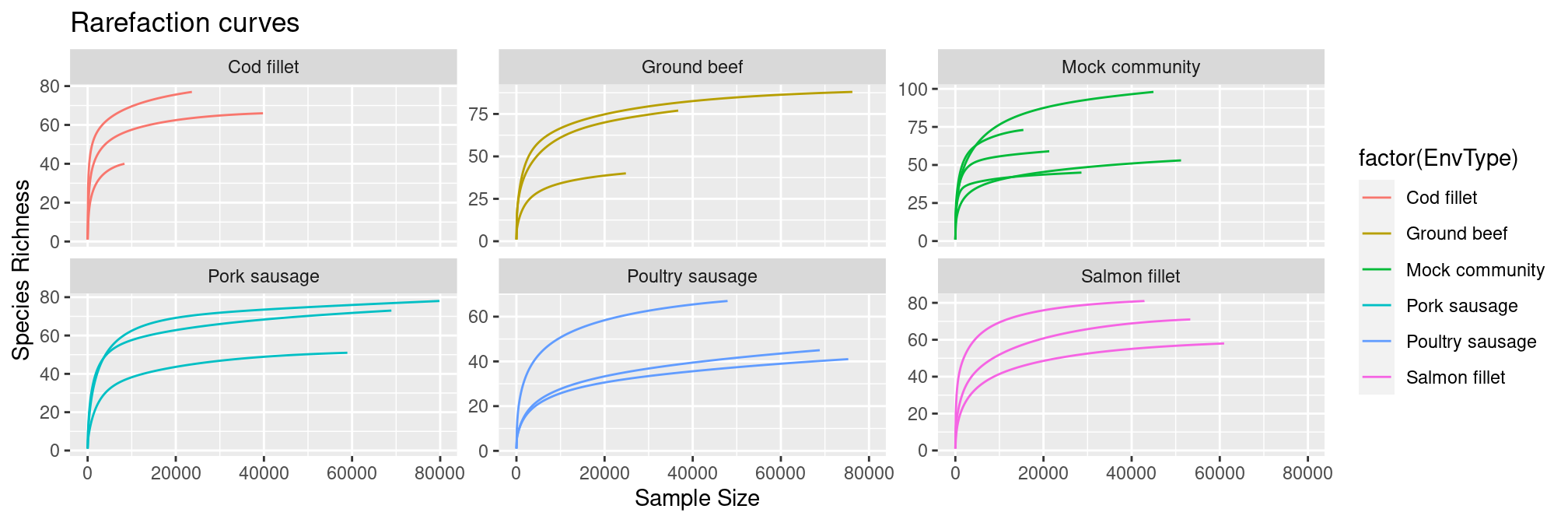

p <- ggrare(physeq = frogs, step = 100, se = FALSE, plot = FALSE) +
      ggtitle("Rarefaction curves") +
  aes(color = factor(EnvType)) +
  facet_wrap(~EnvType, scales = "free_y")
## rarefying sample CF1_16S
## rarefying sample CF2_16S
## rarefying sample CF3_16S
## rarefying sample CS1_16S
## rarefying sample CS2_16S
## rarefying sample CS3_16S
## rarefying sample GB1_16S
## rarefying sample GB2_16S
## rarefying sample GB3_16S
## rarefying sample MC1_16S
## rarefying sample MC2_16S
## rarefying sample MC3_16S
## rarefying sample MC4_16S
## rarefying sample MC5_16S
## rarefying sample PS1_16S
## rarefying sample PS2_16S
## rarefying sample PS3_16S
## rarefying sample SF1_16S
## rarefying sample SF2_16S
## rarefying sample SF3_16S

You can use a dedicated Shiny dedicated called easy16S to explore your phyloseq object easily and rapidly.

Here is a demonstration on this dataset:

The R commands used to generate the figures are available thanks to the button Show code. Once your figure is ready, you can copy the R instructions in your report for reproductibility and tweak it to adapt it to your needs.

A few conclusions

You have learned how to run FROGS on the migale server and to explore the results with easy16S. A small fraction of FROGS tools are presented here and some can be usefull for your own data (demultiplexing, phylogenetic tree, additional filters…). If you have any questions, you can contact us at or at for FROGS specific questions.


1. Escudié F, Auer L, Bernard M, Mariadassou M, Cauquil L, Vidal K, et al. FROGS: Find, Rapidly, OTUs with Galaxy Solution. Bioinformatics. 2018;34:1287–94. doi:10.1093/bioinformatics/btx791.

2. McMurdie PJ, Holmes S. Phyloseq: An r package for reproducible interactive analysis and graphics of microbiome census data. PloS one. 2013;8.

3. Team STD. SRA tools.

4. Andrews S. FastQC a quality control tool for high throughput sequence data.

5. Ewels P, Magnusson M, Lundin S, Käller M. MultiQC: Summarize analysis results for multiple tools and samples in a single report. Bioinformatics. 2016;32:3047–8.

6. Mariadassou M. Phyloseq-extended: Various customs functions written to enhance the base functions of phyloseq. Most of them are used in the formation "métagénomique 16S" provided by the platforms migale and genotoul.

7. Wickham H. Ggplot2: Elegant graphics for data analysis. Springer-Verlag New York; 2016.

8. Pruesse E, Quast C, Knittel K, Fuchs BM, Ludwig W, Peplies J, et al. SILVA: A comprehensive online resource for quality checked and aligned ribosomal rna sequence data compatible with arb. Nucleic acids research. 2007;35:7188–96.

9. Mahé F, Rognes T, Quince C, Vargas C de, Dunthorn M. Swarm v2: Highly-scalable and high-resolution amplicon clustering. PeerJ. 2015;3:e1420.

10. Rognes T, Flouri T, Nichols B, Quince C, Mahé F. VSEARCH: A versatile open source tool for metagenomics. PeerJ. 2016;4:e2584.

Ce site web utilise des cookies pour vous garantir la meilleure expérience possible sur notre site web. En savoir plus Got it
